80W 28 V 0.7-6.2GHz Signal Power Amplifier For Wired LAN Network And Typical VDS

Model Number : YPM07620880M

Place of Origin : Jiangsu, China

Brand Name : SZHUASHI

Price : Prices are negotiable

Delivery Time : 2-10days

Packaging Details : Carton

Type : WIFI REPEATER

Network : Wireless Lan, Wired LAN, wifi

Pout : 80W

Typical VDS : 28 V

Frequency : 0.7-6.2GHz

Contact Now

SZHUASHI 80W 28 V 0.7-6.2GHz Signal Power Amplifier For Wired LAN Network And Typical VDS for 700MHz-6200MHz
Product Description

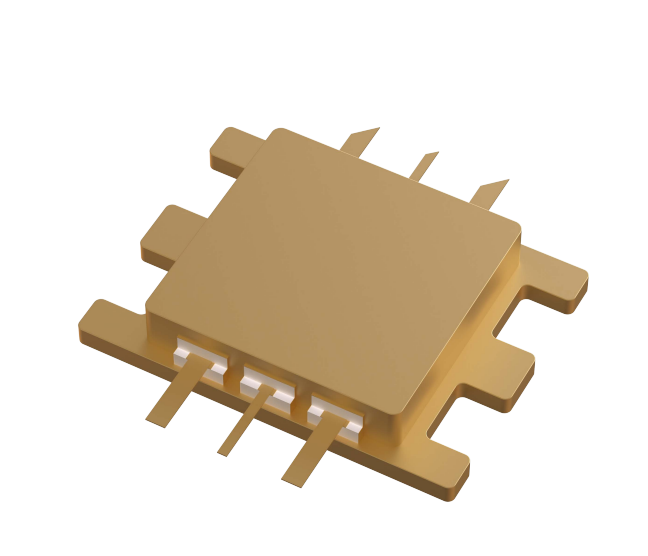

YPM07620880M is a 80-watt, internally 50ohm matched GaN HEMT, designed specifically with high efficiency, high stability and wide bandwidth capabilities, which makes the YPM07620880M ideal for 700MHz~6200MHz, CW amplifier applications.
Features
Suitable for linear and saturation applications Pout=80W, CW
Typical VDS:28 V Freq Range:0.7-6.2GHz
Excellent Thermal Stability and Excellent Ruggedness 100% RF tested
Negative Gate Voltage and Bias Sequencing Required RoHS
80W 28 V 0.7-6.2GHz Signal Power Amplifier For Wired LAN Network And Typical VDS
80W 28 V 0.7-6.2GHz Signal Power Amplifier For Wired LAN Network And Typical VDS80W 28 V 0.7-6.2GHz Signal Power Amplifier For Wired LAN Network And Typical VDS80W 28 V 0.7-6.2GHz Signal Power Amplifier For Wired LAN Network And Typical VDS
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhongshi Zhihui Technology (suzhou) Co., Ltd. is located in Suzhou Industrial Park, founded in 2010, the company is mainly engaged in, and can provide customers with wireless communication network coverage solutions of high-tech enterprises. The company implements radio-oriented development strategy based on radio frequency technology, independent research and development and production of bidirectional frequency conversion super WiFi signal amplifier products, radio frequency and microwave voltage controlled oscillator (VCO), sweep signal source, wireless network card information security module and other product lines, has mastered some core technologies in the product field, has a lot of independent intellectual property rights.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Western Europe(50.00%),Southern Europe(12.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;

Always final Inspection before shipment;

1 year warranty for our products.


3.what can you buy from us?
Signal Booster, VCO, Anti Drone Jammer Module, Power Amplifier, Gain Block and so on
